Medical endoscopy correction device is mainly developed for the development of medical intimidation camera AA (Active Alignment) process. It is platform -based integrated assembly equipment to meet the design needs of different modules and provide customers with a variety of choices. The mature solution has been updated in three generations to meet the certification of many well -known module manufacturers at home and abroad in the medical industry. To a higher degree of automation, we will reduce the manpower for customers, coupled with the entire MES coverage to achieve the status, technical parameters, quality online control and traceability of various work stations.

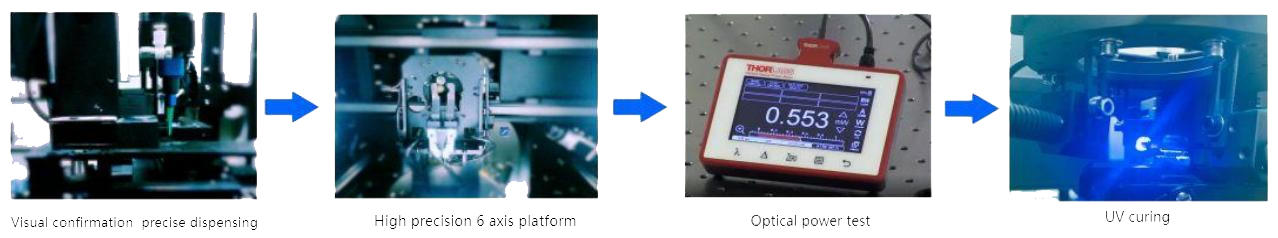

Process introduction
Equipment features
• Wide generosity, use fast replacement methods for different products;
• HEPA filtering guarantees the cleanliness of the front end CLASS100;
• Use 6 freedom, 0.2 μm resolution to ensure the vertical and accurate rear focus of the product of the product;
• HY fourth -generation optical environment patent application, simple replacement can achieve FOV20 ° ~ 210 ° products without blind spots;
• MES coverage, including the collection traceability of important information such as point glue parameters, AA parameters, UV parameters, test results, and station information.
Equipment parameters
| serial number | ltem(item) | Specificationa (description) |
| 1 | size | Length 1200*width 1000*height 1800mm |
| 2 | UPH | ≥50pcs |
| 3 | number of employees | 1 person |
| 4 | Dust-free grade | Front Dynamic Class 100 |
| 5 | Applicable product FOV | 20°~210° |
| 6 | xY/Z axis resolution | 0.2μm |
| 7 | Beta/0 axis resolution | 0.00018 |
| 8 | Applicable product wavelength | White light, 850nm940nm (compatible at the same time) |
| 9 | software algorithm | HY Test System SFR |
