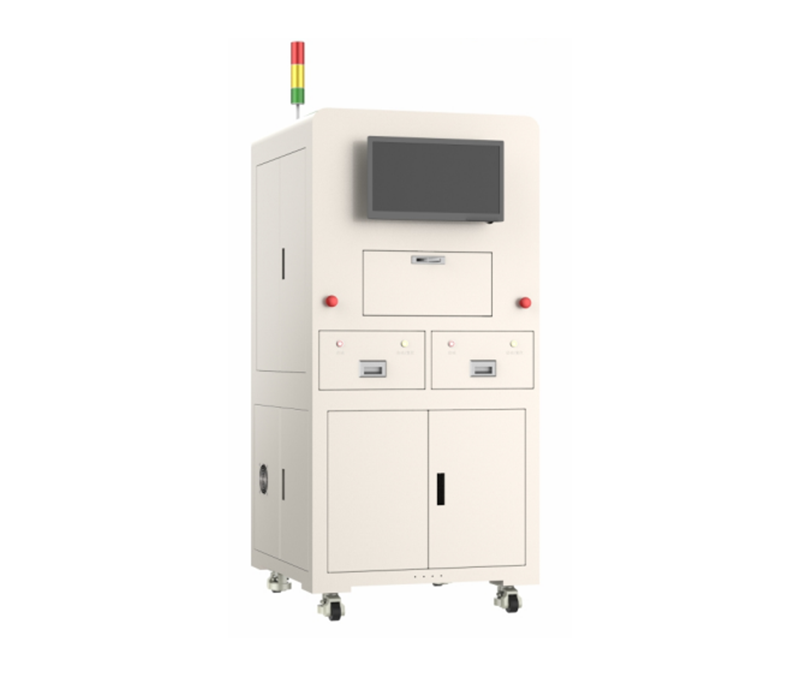

With the development of the mobile Internet, technological progress, and the launch of high -performance and low -power processing chips, intelligent wearable devices have moved from conceptualization to commercialization, new wearable devices have continued to spread, and major technology giants have also entered the game. The development of Huaya crown testing equipment is also based on the rapid development of the industry. The Huaya Crown Crown Testing Equipment is mainly suitable for the built -in sensor calibration of the electronic watch knob, the watch damping detection, the button rebound ratio test, etc.
Equipment features
• The equipment is dual -station test;
• Unique high -precision torque calibration (calibration accuracy ≤ 0.003N.m/cm);
• Automatic testing, automatic feeding, transportation;
• Strong compatibility, which can be suitable for the mechanical performance testing of a variety of smart watch knobs and keys.
Equipment parameters
| project | Specification |
| Turn the crown to press the pressure test | 0.3g |
| Rotating the crown according to the damping force test | 0.2~0.35g.cm |
| Button pressing force CCP ratio | 0.15~0.5 |
| physical dimension | 930*980*1860mm |
| weight | 700KG |
| work surface height | 950mm±50mm |
| Interface Protocol | Industry standards and communication protocols |
| Force Sensor Accuracy | ≥0.03g |
| Torque Calibration Accuracy | ≥0.003Nm.cm |
